Navigating Files and Directories

Overview

Teaching: 15 min
Exercises: 0 min

Questions

• How can I move around on my computer?

• How can I see what files and directories I have?

• How can I specify the location of a file or directory on my computer?

Objectives

• Explain the similarities and differences between a file and a directory.

• Translate an absolute path into a relative path and vice versa.

• Construct absolute and relative paths that identify specific files and directories.

• Explain the steps in the shell’s read-run-print cycle.

• Identify the actual command, flags, and filenames in a command-line call.

• Demonstrate the use of tab completion, and explain its advantages.

The part of the operating system responsible for managing files and directories is called the file system. It organizes our data into files, which hold information, and directories (also called “folders”), which hold files or other directories.

Several commands are frequently used to create, inspect, rename, and delete files and directories.

We’ll start by exploring Nelle’s file system in Windows (or Mac if you prefer!).

Nelle’s file system

Find the data-shell folder in the Class directory and drag onto your desktop. Then double click on the folder to open it. You should get a window that looks something like this:

This layout should be pretty familiar to you. Can you identify several folders and files?

In this display, Windows differentiates folders and files with different icons. It also shows you something of the organization of the file system.

Navigate into the north-pacific-gyre folder, and then into 2012-07-03. In this folder, there is a long list of files. Most are called Text Documents by Windows. We’ll see how Windows determines this in a little bit.

Two of them: goodiff and goostats are just called File. These are actually programs - the programs that Nelle needs to run on each of these files. You can try to open these. Windows doesn’t know how to run them! You can try dragging a file onto the program. But this won’t work. Your best bet is to use notepad to view their code. But even if you could run them in Windows, how could you process all the files?

This is a job for the command line!

Before we start, navigate back to the top folder in the directory: data-shell. You can do this by clicking on the data-shell button in the top bar of the File explorer window.

Questions:

You should be familiar with the following actions in Windows (or OSX):

1. Organizing files in folders
2. Moving files between folders
3. Re-naming files
4. Copying files
5. Saving files in a particular folder
6. Navigating among folders on your computer
7. Deleting files

Preparing a Bash terminal

Now, lets use Bash to navigate Nelle’s file system, and learn to process these files rapidly.

Open a terminal program that runs Bash.

On Windows: Use Git BASH

On Mac: Open Terminal

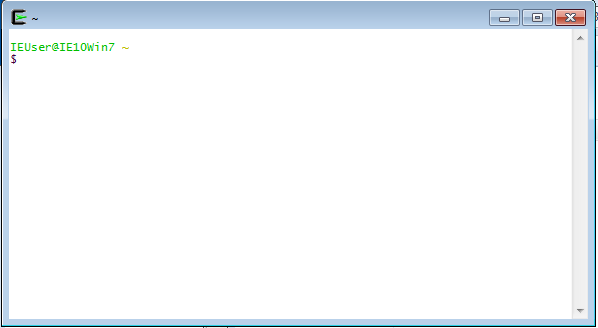

You should have a display that looks something like this:

It may look a bit different on your computer. You can change the style if you want. The default is usually a black background with white text. I prefer a white background with black text. On Git BASH, right-click with your mouse and select Options.., and then choose a Foreground and Background color.

IEUser@IE10Win7 ~
$

The text that you see on your screen is called a prompt, which shows us that the shell is waiting for input; your shell may use a different character as a prompt and may add information before the prompt. When typing commands, either from these lessons or from other sources, do not type the prompt, only the commands that follow it.

If you want your prompt to look like mine, type the command: PS1="$ " and then hit Enter. Now you should see:

$

Commands

Type the command whoami, then press the Enter key (sometimes marked Return) to send the command to the shell. The command’s output is the ID of the current user, i.e., it shows us who the shell thinks we are:

$ whoami

nelle

More specifically, when we type whoami the shell:

1. finds a program called whoami,
2. runs that program,
3. displays that program’s output, then
4. displays a new prompt to tell us that it’s ready for more commands.

Username Variation

In this lesson, we have used the username nelle (associated with our hypothetical scientist Nelle) in example input and output throughout.
However, when you type this lesson’s commands on your computer, you should see and use something different, namely, the username associated with the user account on your computer. This username will be the output from whoami. In what follows, nelle should always be replaced by that username.

Unknown commands

Remember, the Shell is a program that runs other programs rather than doing calculations itself. So the commands you type must be the names of existing programs. If you type the name of a program that does not exist and hit enter, you will see an error message similar to this:

$ mycommand

-bash: mycommand: command not found

The Shell (Bash) tells you that it cannot find the program mycommand because the program you are trying to run does not exist on your computer. (Or, at least it doesn’t exist in the folder that Bash is running in right now!) We will touch quite a few commands in the course of this tutorial, but there are actually many more than we can cover here.

ls command

Now let’s learn the command that will let us see the contents of our own filesystem. We can see what’s in our home directory by running ls, which stands for “listing”:

$ ls

Applications Documents    Library      Music        Public
Desktop      Downloads    Movies       Pictures

(Again, your results may be slightly different depending on your operating system and how you have customized your filesystem.)

ls prints the names of the files and directories in the current directory in alphabetical order, arranged neatly into columns. We can make its output more comprehensible by using the flag -F, which tells ls to add a trailing / to the names of directories:

$ ls -F

Applications/ Documents/    Library/      Music/        Public/
Desktop/      Downloads/    Movies/       Pictures/

ls has lots of other options. To find out what they are, we can type:

$ ls --help

Usage: ls [OPTION]... [FILE]...
List information about the FILEs (the current directory by default).
Sort entries alphabetically if none of -cftuvSUX nor --sort is specified.

Mandatory arguments to long options are mandatory for short options too.
  -a, --all                  do not ignore entries starting with .
  -A, --almost-all           do not list implied . and ..
      --author               with -l, print the author of each file
  -b, --escape               print C-style escapes for nongraphic characters
      --block-size=SIZE      scale sizes by SIZE before printing them; e.g.,
                               '--block-size=M' prints sizes in units of
                               1,048,576 bytes; see SIZE format below
  -B, --ignore-backups       do not list implied entries ending with ~
  -c                         with -lt: sort by, and show, ctime (time of last
                               modification of file status information);
                               with -l: show ctime and sort by name;
                               otherwise: sort by ctime, newest first
  -C                         list entries by columns
      --color[=WHEN]         colorize the output; WHEN can be 'always' (default
                               if omitted), 'auto', or 'never'; more info below
  -d, --directory            list directories themselves, not their contents
  -D, --dired                generate output designed for Emacs' dired mode
  -f                         do not sort, enable -aU, disable -ls --color
  -F, --classify             append indicator (one of */=>@|) to entries
      --file-type            likewise, except do not append '*'
      --format=WORD          across -x, commas -m, horizontal -x, long -l,
                               single-column -1, verbose -l, vertical -C
      --full-time            like -l --time-style=full-iso
  -g                         like -l, but do not list owner
      --group-directories-first
                             group directories before files;
                               can be augmented with a --sort option, but any
                               use of --sort=none (-U) disables grouping
  -G, --no-group             in a long listing, don't print group names
  -h, --human-readable       with -l and/or -s, print human readable sizes
                               (e.g., 1K 234M 2G)
      --si                   likewise, but use powers of 1000 not 1024
  -H, --dereference-command-line
                             follow symbolic links listed on the command line
      --dereference-command-line-symlink-to-dir
                             follow each command line symbolic link
                               that points to a directory
      --hide=PATTERN         do not list implied entries matching shell PATTERN
                               (overridden by -a or -A)
      --indicator-style=WORD  append indicator with style WORD to entry names:
                               none (default), slash (-p),
                               file-type (--file-type), classify (-F)
  -i, --inode                print the index number of each file
  -I, --ignore=PATTERN       do not list implied entries matching shell PATTERN
  -k, --kibibytes            default to 1024-byte blocks for disk usage
  -l                         use a long listing format
  -L, --dereference          when showing file information for a symbolic
                               link, show information for the file the link
                               references rather than for the link itself
  -m                         fill width with a comma separated list of entries
  -n, --numeric-uid-gid      like -l, but list numeric user and group IDs
  -N, --literal              print raw entry names (don't treat e.g. control
                               characters specially)
  -o                         like -l, but do not list group information
  -p, --indicator-style=slash
                             append / indicator to directories
  -q, --hide-control-chars   print ? instead of nongraphic characters
      --show-control-chars   show nongraphic characters as-is (the default,
                               unless program is 'ls' and output is a terminal)
  -Q, --quote-name           enclose entry names in double quotes
      --quoting-style=WORD   use quoting style WORD for entry names:
                               literal, locale, shell, shell-always,
                               shell-escape, shell-escape-always, c, escape
  -r, --reverse              reverse order while sorting
  -R, --recursive            list subdirectories recursively
  -s, --size                 print the allocated size of each file, in blocks
  -S                         sort by file size, largest first
      --sort=WORD            sort by WORD instead of name: none (-U), size (-S),
                               time (-t), version (-v), extension (-X)
      --time=WORD            with -l, show time as WORD instead of default
                               modification time: atime or access or use (-u);
                               ctime or status (-c); also use specified time
                               as sort key if --sort=time (newest first)
      --time-style=STYLE     with -l, show times using style STYLE:
                               full-iso, long-iso, iso, locale, or +FORMAT;
                               FORMAT is interpreted like in 'date'; if FORMAT
                               is FORMAT1<newline>FORMAT2, then FORMAT1 applies
                               to non-recent files and FORMAT2 to recent files;
                               if STYLE is prefixed with 'posix-', STYLE
                               takes effect only outside the POSIX locale
  -t                         sort by modification time, newest first
  -T, --tabsize=COLS         assume tab stops at each COLS instead of 8
  -u                         with -lt: sort by, and show, access time;
                               with -l: show access time and sort by name;
                               otherwise: sort by access time, newest first
  -U                         do not sort; list entries in directory order
  -v                         natural sort of (version) numbers within text
  -w, --width=COLS           set output width to COLS.  0 means no limit
  -x                         list entries by lines instead of by columns
  -X                         sort alphabetically by entry extension
  -Z, --context              print any security context of each file
  -1                         list one file per line.  Avoid '\n' with -q or -b
      --help     display this help and exit
      --version  output version information and exit

The SIZE argument is an integer and optional unit (example: 10K is 10*1024).
Units are K,M,G,T,P,E,Z,Y (powers of 1024) or KB,MB,... (powers of 1000).

Using color to distinguish file types is disabled both by default and
with --color=never.  With --color=auto, ls emits color codes only when
standard output is connected to a terminal.  The LS_COLORS environment
variable can change the settings.  Use the dircolors command to set it.

Exit status:
 0  if OK,
 1  if minor problems (e.g., cannot access subdirectory),
 2  if serious trouble (e.g., cannot access command-line argument).

GNU coreutils online help: <http://www.gnu.org/software/coreutils/>
Full documentation at: <http://www.gnu.org/software/coreutils/ls>
or available locally via: info '(coreutils) ls invocation'

Many bash commands, and programs that people have written that can be run from within bash, support a --help flag to display more information on how to use the commands or programs.

Unsupported command-line options

If you try to use an option that is not supported, ls and other programs will print an error message similar to this:

$ ls -j

ls: invalid option -- 'j'
Try 'ls --help' for more information.

## For more information on how to use ls we can type man ls. man is the Unix “manual” command: it prints a description of a command and its options, and (if you’re lucky) provides a few examples of how to use it. To navigate through the man pages, you may use the up and down arrow keys to move line-by-line, or try the “b” and spacebar keys to skip up and down by full page. Quit the man pages by typing “q”.

Another source for documentation is the internet. Most man pages are available on Wikipedia: ex ls. Or just Google.

Here, we can see that our home directory contains mostly sub-directories. Any names in your output that don’t have trailing slashes, are plain old files. And note that there is a space between ls and -F: without it, the shell thinks we’re trying to run a command called ls-F, which doesn’t exist.

We can also use ls to see the contents of a different directory. Let’s take a look at our Desktop directory by running ls -F Desktop, i.e., the command ls with the arguments -F and Desktop. The second argument — the one without a leading dash — tells ls that we want a listing of something other than our current working directory:

$ ls -F Desktop

data-shell/

Your output should be a list of all the files and sub-directories on your Desktop, including the data-shell directory you downloaded at the start of the lesson. Take a look at your Desktop to confirm that your output is accurate.

As you may now see, using a bash shell is strongly dependent on the idea that your files are organized in an hierarchical file system.
Organizing things hierarchically in this way helps us keep track of our work: it’s possible to put hundreds of files in our home directory, just as it’s possible to pile hundreds of printed papers on our desk, but it’s a self-defeating strategy.

Now that we know the data-shell directory is located on our Desktop, we can do two things.

First, we can look at its contents, using the same strategy as before, passing a directory name to ls:

$ ls -F Desktop/data-shell

creatures/          molecules/          notes.txt           solar.pdf
data/               north-pacific-gyre/ pizza.cfg           writing/

Second, we can actually change our location to a different directory, so we are no longer located in our home directory. Doing this requires moving around your filesystem.

The command to change locations is cd followed by a directory name to change our working directory. cd stands for “change directory”, which is a bit misleading: the command doesn’t change the directory, it changes the shell’s idea of what directory we are in.

Let’s say we want to move to the data directory we saw above. We can use the following series of commands to get there:

$ cd Desktop
$ cd data-shell
$ cd data

These commands will move us from our home directory onto our Desktop, then into the data-shell directory, then into the data directory. cd doesn’t print anything. But if we type ls after, we now see the files and folders in the data directory. You can check this by repeating these actions in Windows Explorer.

pwd command

Using ls, we can see what our current directory looks like. If you know your filesystem well, you might be able to identify where your are. But it’s easy to get lost without the address bar at the top of Windows Explorer or Finder. That’s were pwd comes in:

Type:

$ pwd

/Users/nelle/Desktop/data-shell/data

This is a similar display to what we get in an Explorer window, except folders are separated by the / character.

Let’s explore this output for a bit:

Home Directory Variation

The home directory path will look different on different operating systems. On Linux it may look like /home/nelle, and on Windows it will be similar to C:\Documents and Settings\nelle or C:\Users\nelle.
(Note that it may look slightly different for different versions of Windows.) In future examples, we’ve used Mac output as the default - Linux and Windows output may differ slightly, but should be generally similar.

To understand what a “home directory” is, let’s have a look at how the file system as a whole is organized. For the sake of this example, we’ll be illustrating the filesystem on our scientist Nelle’s computer. After this illustration, you’ll be learning commands to explore your own filesystem, which will be constructed in a similar way, but not be exactly identical.

On Nelle’s computer, the filesystem looks like this:

At the top is the root directory that holds everything else. We refer to it using a slash character / on its own; this is the leading slash in /Users/nelle.

Inside that directory are several other directories: bin (which is where some built-in programs are stored), data (for miscellaneous data files), Users (where users’ personal directories are located), tmp (for temporary files that don’t need to be stored long-term), and so on.

We know that our current working directory /Users/nelle is stored inside /Users because /Users is the first part of its name. Similarly, we know that /Users is stored inside the root directory / because its name begins with /.

Slashes

Notice that there are two meanings for the / character. When it appears at the front of a file or directory name, it refers to the root directory. When it appears inside a name, it’s just a separator.

Underneath /Users, we find one directory for each user with an account on Nelle’s machine, her colleagues the Mummy and Wolfman.

The Mummy’s files are stored in /Users/imhotep, Wolfman’s in /Users/larry, and Nelle’s in /Users/nelle. Because Nelle is the user in our examples here, this is why we get /Users/nelle as our home directory.
Typically, when you open a new command prompt you will be in your home directory to start.

but if we run pwd after it, we can see that we are now in /Users/nelle/Desktop/data-shell/data. If we run ls without arguments now, it lists the contents of /Users/nelle/Desktop/data-shell/data, because that’s where we now are:

$ pwd

/Users/nelle/Desktop/data-shell/data

$ ls -F

amino-acids.txt   elements/     pdb/	        salmon.txt
animals.txt       morse.txt     planets.txt     sunspot.txt

We now know how to go down the directory tree, but how do we go up? We might try the following:

$ cd data-shell

-bash: cd: data-shell: No such file or directory

But we get an error! Why is this?

With our methods so far, cd can only see sub-directories inside your current directory. There are different ways to see directories above your current location; we’ll start with the simplest.

There is a shortcut in the shell to move up one directory level that looks like this:

$ cd ..

.. is a special directory name meaning “the directory containing this one”, or more succinctly, the parent of the current directory. Sure enough, if we run pwd after running cd .., we’re back in /Users/nelle/Desktop/data-shell:

$ pwd

/Users/nelle/Desktop/data-shell

The special directory .. doesn’t usually show up when we run ls. If we want to display it, we can give ls the -a flag:

$ ls -F -a

./                  creatures/          notes.txt
../                 data/               pizza.cfg
.bash_profile       molecules/          solar.pdf
Desktop/            north-pacific-gyre/ writing/

-a stands for “show all”; it forces ls to show us file and directory names that begin with ., such as .. (which, if we’re in /Users/nelle, refers to the /Users directory) As you can see, it also displays another special directory that’s just called ., which means “the current working directory”. It may seem redundant to have a name for it, but we’ll see some uses for it soon.

Note that in most command line tools, multiple parameters can be combined with a single - and no spaces between the parameters: ls -F -a is equivalent to ls -Fa.

Orthogonality

The special names . and .. don’t belong to cd; they are interpreted the same way by every program. For example, if we are in /Users/nelle/data, the command ls .. will give us a listing of /Users/nelle. When the meanings of the parts are the same no matter how they’re combined, programmers say they are orthogonal: Orthogonal systems tend to be easier for people to learn because there are fewer special cases and exceptions to keep track of.

These then, are the basic commands for navigating the filesystem on your computer: pwd, ls and cd. Let’s explore some variations on those commands. What happens if you type cd on its own, without giving a directory?

$ cd

How can you check what happened? pwd gives us the answer!

$ pwd

/Users/nelle

It turns out that cd without an argument will return you to your home directory, which is great if you’ve gotten lost in your own filesystem.

Let’s try returning to the data directory from before. Last time, we used three commands, but we can actually string together the list of directories to move to data in one step:

$ cd Desktop/data-shell/data

Check that we’ve moved to the right place by running pwd and ls -F

If we want to move up one level from the data directory, we could use cd ... But there is another way to move to any directory, regardless of your current location.

Absolute path

So far, when specifying directory names, or even a directory path (as above), we have been using relative paths. When you use a relative path with a command like ls or cd, it tries to find that location from where we are, rather than from the root of the file system.

However, it is possible to specify the absolute path to a directory by including its entire path from the root directory, which is indicated by a leading slash. The leading / tells the computer to follow the path from the root of the file system, so it always refers to exactly one directory, no matter where we are when we run the command.

This allows us to move to our data-shell directory from anywhere on the filesystem (including from inside data). To find the absolute path we’re looking for, we can use pwd and then extract the piece we need to move to data-shell.

$ pwd

/Users/nelle/Desktop/data-shell/data

$ cd /Users/nelle/Desktop/data-shell

Run pwd and ls -F to ensure that we’re in the directory we expect.

Two More Shortcuts

The shell interprets the character ~ (tilde) at the start of a path to mean “the current user’s home directory”. For example, if Nelle’s home directory is /Users/nelle, then ~/data is equivalent to /Users/nelle/data. This only works if it is the first character in the path: here/there/~/elsewhere is not here/there/Users/nelle/elsewhere.

Another shortcut is the - (dash) character. cd will translate - into the previous directory I was in, which is faster than having to remember, then type, the full path. This is a very efficient way of moving back and forth between directories. The difference between cd .. and cd - is that the former brings you up, while the latter brings you back. You can think of it as the Last Channel button on a TV remote.

Customizing your Prompt

Here’s a quick hack that can help: change your prompt to always display the path.

Enter:

PS1='\w\$ '

Now you’ll never lose your place!

Nelle’s Pipeline: Organizing Files

As we saw, Nelle used a nested folder system to organize the files that the protein assay machine will create. First, she created a directory called north-pacific-gyre (to remind herself where the data came from). Inside that, she created a directory called 2012-07-03, which is the date she started processing the samples.

Sorting Output

Nelle names her directories “year-month-day”, with leading zeroes for months and days, because the shell displays file and directory names in alphabetical order. If she used month names, December would come before July; if she didn’t use leading zeroes, November (‘11’) would come before July (‘7’). Similarly, putting the year first means that June 2012 will come before June 2013.

Each of her physical samples is labelled according to her lab’s convention with a unique ten-character ID, such as “NENE01729A”. This is what she used in her collection log to record the location, time, depth, and other characteristics of the sample, so she decides to use it as part of each data file’s name. Since the assay machine’s output is plain text, she will call her files NENE01729A.txt, NENE01812A.txt, and so on. All 1520 files will go into the same directory.

Now in her current directory data-shell, Nelle can see what files she has using the command:

$ ls north-pacific-gyre/2012-07-03/

This is a lot to type, but she can let the shell do most of the work through what is called tab completion. If she types:

$ ls nor

and then presses tab (the tab key on her keyboard), the shell automatically completes the directory name for her:

$ ls north-pacific-gyre/

If she presses tab again, Bash will add 2012-07-03/ to the command, since it’s the only possible completion. Pressing tab again does nothing, since there are 19 possibilities; pressing tab twice brings up a list of all the files, and so on. This is called tab completion, and we will see it in many other tools as we go on.

Key Points

• The file system is responsible for managing information on the disk.

• Information is stored in files, which are stored in directories (folders).

• Directories can also store other directories, which forms a directory tree.

• cd path changes the current working directory.

• ls path prints a listing of a specific file or directory; ls on its own lists the current working directory.

• pwd prints the user’s current working directory.

• whoami shows the user’s current identity.

• / on its own is the root directory of the whole file system.

• A relative path specifies a location starting from the current location.

• An absolute path specifies a location from the root of the file system.

• Directory names in a path are separated with ‘/’ on Unix, but ‘\’ on Windows.

• ’..’ means ‘the directory above the current one’; ‘.’ on its own means ‘the current directory’.

• Most files’ names are something.extension. The extension isn’t required, and doesn’t guarantee anything, but is normally used to indicate the type of data in the file.

• Most commands take options (flags) which begin with a ‘-‘.
